Formal verification for vision has historically focused on classification: prove that the correct label is preserved under perturbation. That is important, but it is not yet enough for many deployed systems. In object detection, the central question is not only whether the object is recognized, but whether it is localized well enough to be useful.

VerifIoU 1 is significant because it changes the verified quantity. Instead of treating the final guarantee as a class-preservation statement, it reasons directly about the task metric that practitioners already use to judge detector quality: Intersection over Union (IoU).

Why Detection Is Harder Than Classification

A classifier outputs a label or logits. A detector outputs geometry. Even in the simplified single-object setting used in the paper, the model returns a bounding box

\[b = [z_0, z_1, z_2, z_3],\]

where (z_0, z_1) and (z_2, z_3) denote opposite corners. The correctness notion is not binary in the same sense as class equality. It depends on how much the predicted box overlaps the reference box.

That overlap is measured by IoU:

\[\mathrm{IoU}_{b_{\mathrm{gt}}}(b) = \frac{a(b \cap b_{\mathrm{gt}})} {a(b) + a(b_{\mathrm{gt}}) - a(b \cap b_{\mathrm{gt}})}.\]

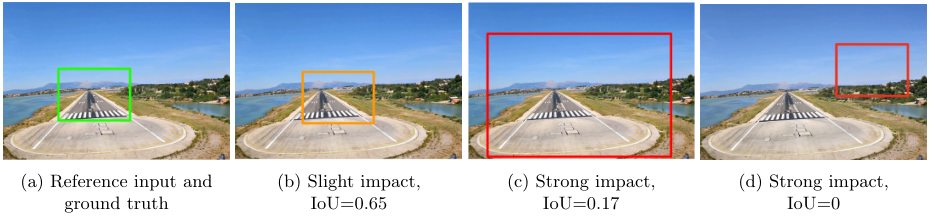

This quantity is multi-dimensional, non-convex, and highly sensitive to interactions between the four box coordinates. Small coordinate shifts can collapse overlap abruptly. That is why detector verification is not a trivial extension of classifier verification.

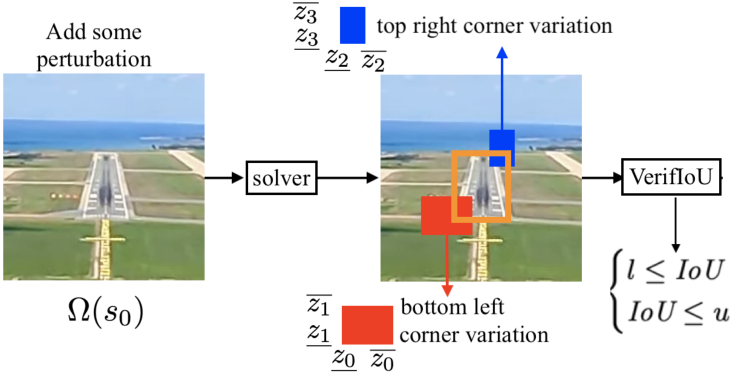

The Two-Stage VerifIoU Pipeline

The design of VerifIoU is elegant because it isolates the hard parts.

Step 1: Bound the detector output

Use an abstract-interpretation or linear-relaxation verifier such as ERAN, Auto-LiRPA 3, or CROWN to derive bounds on the predicted box coordinates:

\[\underline{z}_i \le z_i \le \overline{z}_i, \qquad i \in \{0,1,2,3\}.\]

This yields a reachable set of candidate boxes, typically represented as an interval box in \mathbb{R}^4.

Step 2: Bound IoU over that set

Rather than encoding the IoU computation as another latent layer of the network, the paper treats IoU as a metric over the reachable box set and analyzes its extreme values directly.

If \mathbf{b} is the set of possible predicted boxes under the perturbation domain, the relevant robustness quantity is

\[\min_{s \in \Omega(s_0)} \mathrm{IoU}_{\mathrm{gt}}(f_{\mathrm{OD}}(s)) = \min_{b \in \mathbf{b}} \mathrm{IoU}_{\mathrm{gt}}(b).\]

The detector is certified robust at threshold t if

\[\underline{\mathrm{IoU}}_{\mathrm{gt}}(\mathbf{b}) \ge t.\]

For instance, t = 0.5 is the classical “good detection” threshold.

Vanilla IoU Versus Optimal IoU

The paper develops two bounding strategies.

Vanilla IoU

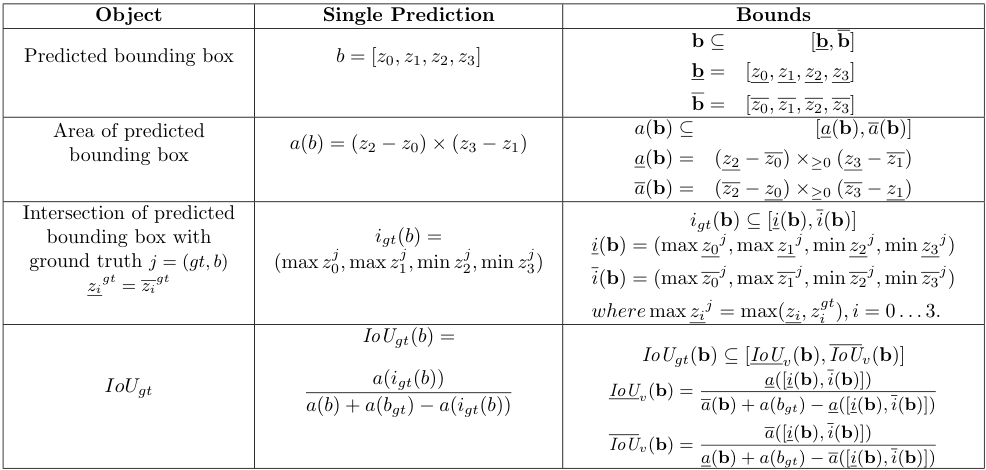

Apply interval arithmetic to the constituent expressions for area, intersection, and union. This is easy to implement and solver-agnostic, but it inherits the dependency problem. The resulting bounds can be overly conservative.

Optimal IoU

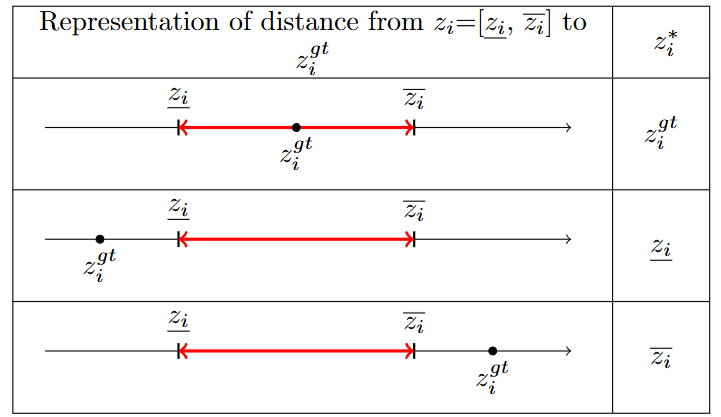

Exploit the coordinatewise behavior of the IoU function. The key result is that the maximum IoU over the predicted-box interval is attained at the point obtained by clipping each coordinate toward the corresponding ground-truth coordinate:

\[z_i^* = \min\!\bigl( \max(z_i^{\mathrm{gt}}, \underline{z}_i), \overline{z}_i \bigr).\]

For the minimum IoU, the analysis reduces to checking the vertices of the interval box, with the usual caveat that ill-defined boxes collapse the lower bound to 0.

This is the kind of result that matters in practice: it converts a non-convex optimization problem into a small number of structured evaluations, while keeping the final bound sound.

Why This Matters In Computer Vision

VerifIoU is especially important because it speaks the language of deployed perception.

In applications like runway localization, autonomous driving, and robotics, a label-only certificate is not enough. The system needs a prediction whose geometry remains usable. A detector that says “runway” but shifts the bounding box enough to spoil downstream control is not robust in any operationally meaningful sense.

That is why the paper’s emphasis on aviation is not incidental. It is a model case for safe intelligence:

• the perception task is safety-relevant;
• the performance metric is geometric, not purely categorical;
• regulations increasingly demand robustness evidence, not only empirical evaluation.

Where This Meets DeepG

At a conceptual level, DeepG and VerifIoU solve complementary problems.

• DeepG 2 certifies realistic input transformations for classifiers.
• VerifIoU certifies realistic output metrics for detectors.

Together they suggest a larger research program: verified computer vision should reason about both the transformation process and the deployment metric.

This is where the most interesting open question appears.

Verified Object Detection Under Geometric Perturbations

The current VerifIoU setting assumes a fixed ground-truth box while the input image is perturbed. That is natural for brightness, contrast, or L_\infty noise. It is not sufficient for truly geometric perturbations.

If the image is rotated, translated, scaled, or sheared, then the object support moves in the image plane itself. In that setting, a principled certificate should not only propagate uncertainty through the detector. It should also propagate the corresponding transformation through the reference geometry.

In other words, for geometric detector verification one should certify a quantity closer to

\[\min_{\kappa \in h} \mathrm{IoU}\!\left( b_{\mathrm{pred}}(\kappa), b_{\mathrm{gt}}(\kappa) \right),\]

where both the predicted box and the transformed ground-truth geometry depend on the same perturbation parameters \kappa.

This point is easy to miss, but it is essential. If the reference geometry is kept artificially fixed while the image undergoes a genuine geometric warp, the certificate may mix model error with coordinate-frame inconsistency.

Why Ground-Truth Propagation Is Nontrivial

For axis-aligned boxes, co-transforming the annotation is already delicate because a rotated object is no longer naturally represented by an axis-aligned rectangle. The “correct” transformed support may be better captured by:

• an oriented bounding box;
• a polygonal approximation of the object footprint;
• or a segmentation mask.

This is where the frontier becomes genuinely interesting for computer vision.

One plausible route is:

1. propagate geometric bounds through the image formation process, as in DeepG;
2. propagate matching bounds through the annotation geometry;
3. approximate the transformed ground truth by a high-resolution polygon;
4. certify a lower bound on polygonal IoU against all admissible detector outputs.

Your hinted formulation fits naturally here. If one represents the transformed support with, say, 256 vertices, then the verifier can seek a certified minimum IoU over that polygonal approximation. The role of the dense discretization is not mystical. It is to make the geometry approximation error negligible relative to the verification bound, especially for slender or rotated objects such as runways.

This is not what VerifIoU currently proves. It is the natural next step that the paper helps reveal.

Why Runways Are A Perfect Case Study

Runway detection is a particularly strong application because it combines all the hard parts:

• geometric perturbations from viewpoint and pose;
• elongated shapes for which poor overlap can have large operational consequences;
• scale variation as the aircraft approaches;
• strong safety requirements and explicit certification pressure.

A credible future certificate for runway detection would likely need all of the following:

• geometric perturbation propagation in the spirit of DeepG;
• detector-output bound propagation in the spirit of VerifIoU;
• reference-geometry propagation for the ground truth itself;
• a shape representation richer than a naive axis-aligned box.

That is exactly the kind of research direction that belongs under the umbrella of safe intelligence.

Final Takeaway

The move from classifier robustness to detector robustness is not a minor extension. It changes the object of certification from “class stability” to “task-level geometric adequacy.”

VerifIoU is important because it makes that move explicit, mathematically precise, and computationally tractable for a meaningful subclass of object-detection problems. It is also important because it shows where the next wall is:

Safe computer vision will ultimately need certificates that are both transformation-aware and metric-aware.

That is the synthesis of this whole series.
